Project: E-commerce system Architecture, Design and Implementation

1.    Business Case

Develop online shopping web application, which is capable of secure online shopping and payment by credit card in addition to cash on delivery option (COD). The delivery of the goods should be completed within 2 working days.

The system will improve customer experience by allowing to shop online instead of visiting the stores, which finally results in satisfied customer and company (Sumedagawa Corporation) revenue growth.

Context Diagram:

2.    Use case model

(Interaction between actors and system.)

Figure 1: Use case model for E-commerce system

    Table 1: List of actors for the E-commerce system

Actor	Description
Customer	Customer interacts with the system to buy item, search item and do payment. No login is necessary to search an item.
Credit card Gateway	The gateway gets the input from the do payment use case to authorize the payment. For authorization purpose it connects to the credit card gateway.
Delivery Service	Deliver Service actor, delivers the item to the Customer as per instructions from the deliver item use case

2.1 List of use cases based on above use case model

ID	Use case title	Description
UC1	Do Sign-up	New user sign-up
UC3	Do Login	Customer login
UC3	Search item	Search item based on the keyword
UC4	Buy item	Buy item after search
UC5	Do payment	Process order payment with external system
UC6	Deliver item	Deliver the item to the customer via delivery service

2.2 Use case details

2.2.1 Use case: Do Sign-up

Use case name	Do Sign-up
Use case ID
Description
Level
Primary actors
Supporting actors
Stakeholders
Pre-condition
Post-condition	Success end:
	Failure end:
	Minimum guarantee:
Main Flow (MF, success): Extensions:

Sequence diagram (MF): Do Sign-up

To-do

2.2.2 Use case: Do login

Use case name	Do login
Use case ID
Description
Level
Primary actors
Supporting actors
Stakeholders
Pre-condition
Post-condition	Success end:
	Failure end:
	Minimum guarantee:
Main Flow (MF, success): Extensions:

Sequence diagram (MF):  Do Login

Figure 2: Sequence diagram for Do Login scenario

2.2.3 Use case: Search item

Use case name	Search item
Use case ID
Description
Level
Primary actors
Supporting actors
Stakeholders
Pre-condition
Post-condition	Success end:
	Failure end:
	Minimum guarantee:
Main Flow (MF, success): Extensions:

Sequence diagram (MF):

To-do

2.2.4 Use case: Buy item

Use case name	Buy Item
Use case ID	UC4
Description	Customer buys item by putting it into the shopping cart and checkout to do payment. Once the payment is confirmed the deliver service get notification about delivering the item to the billing address.
Level	High
Primary actors	Customer
Supporting actors	Credit card gateway,
Stakeholders	Customer, Delivery service, Credit card gateway
Pre-condition	Customer should be login
Post-condition	Success end: Customer successfully buys the item
	Failure end: payment failure
	Minimum guarantee: The transaction will atomic (full success or full rollback in case of failure)
Main Flow (MF, success): 1. Customer search item 2. System displays the item 3. Customer add the item to shopping cart 4. Customer checks out 5. System displays total payment information and credit card form 6. Customer enter credit card details and do payment 7. System gets authorization from credit card company 8. System displays payment and item confirmation details Extensions: 7a. System gets un-authorization from the credit card company 1.  Customer can reenter card information and retry

Sequence diagram (MF):

To-do

2.2.5 Use case: Do payment

Use case name	Do payment
Use case ID
Description
Level
Primary actors
Supporting actors
Stakeholders
Pre-condition
Post-condition	Success end:
	Failure end:
	Minimum guarantee:
Main Flow (MF, success): Extensions:

Sequence diagram (MF):

To-do

2.2.6 Use case: Deliver item

Use case name	Deliver item
Use case ID
Description
Level
Primary actors
Supporting actors
Stakeholders
Pre-condition
Post-condition	Success end:
	Failure end:
	Minimum guarantee:
Main Flow (MF, success): Extensions:

Sequence diagram (MF):
To-do

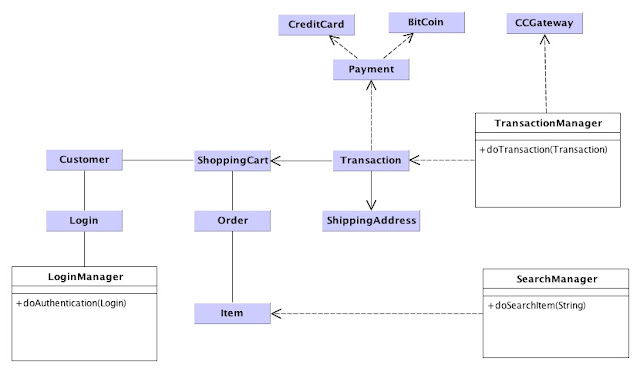

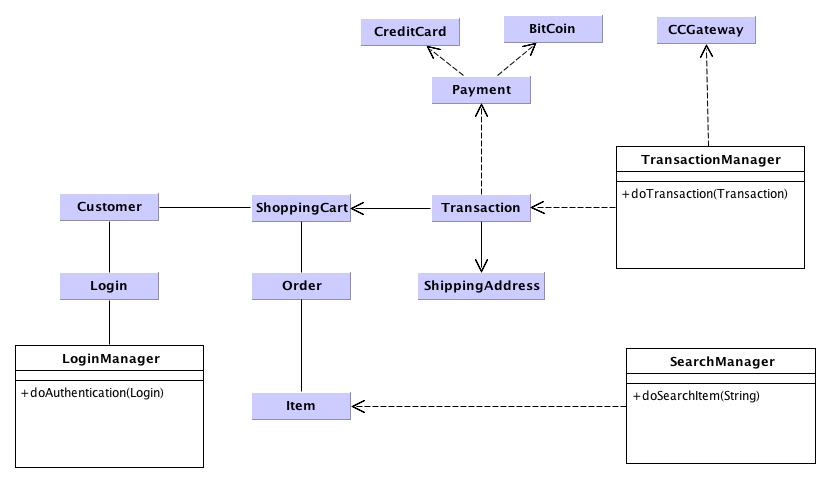

2.3 Class Diagram:

Class	Responsibility

3.    Requirements (primary requirements are drivers)

3.1 Functional requirements

ID	Requirement List	Primary?
FR1	Do Sign-up	Y
FR2	Do Login	Y
FR3	Search item	Y
FR4	Buy item	Y
FR5	Do payment	Y
FR6	Deliver item	Y

3.2    Quality attributes (NFR, driver)

ID	Quality Attribute	Outcome (Testable and Measureable)
QA1

3.3         Quality attribute scenarios (driver)

ID	Quality Attribute	Scenario	Related UC
QAW1	Security	All transactions should be logged	UC2
		All transactions should be secured with SSL	UC2

     3.4   Constraints (NFR, driver)

ID	Type	Description
CN1	Business	System should be released before Dec. 2016
CN2	Technical	User accounts should be authenticated using internal customer db (non-cloud)
CN3	Technical	System must support IE browser, version 9 and above
CN4	Technical	Data source connection should be over JDBC protocol

     3.5    Architectural Concerns (driver)

ID	Description
ACN1	The system shall be programmed using Java and java based technologies
ACN2	Application logs shall be maintained using daily rotation

4. Architectural Documentation

4.1 Module Structure (dc: use reference architecture & deployment diagram)

(Static view)

TO-DO: DIAGRAM

Element	Responsibility

4.2 Component & Connector Structure  (component diagram)

(Dynamic view)

TO-DO: DIAGRAM

Element	Responsibility

4.3 Allocation View

(Relation of the system to non-software structures in the environment)

TO-DO: DIAGRAM

Element	Responsibility

5. Implementation

Implementation is based on MVC (Model View Controller) design pattern. For class diagram please refer to section above.

Project Structure in Eclipse:

5.1 Source code:

---

[LoginManager.java]

package controller;

import java.sql.Connection;

import model.Login;

import model.dao.DBConnectionManger;

import model.dao.LoginDAO;

public class LoginManager {



       /**

        * Method to authenticate the user for the specified login information.

        * @param login login information

        * @return true if authentic user else return false

        */

       public boolean doAuthentication(Login login) {



              boolean result = false;



              try {

                     Connection connection = DBConnectionManger.getConnection();

                     LoginDAO loginDAO = new LoginDAO(connection);



                     result = loginDAO.doCheck(login);



              } finally {

                     DBConnectionManger.closeConnection();

              }



              return result;

       }

}

---

[Login.java]

package model;

public class Login {

       private String userId;

       private String password;



       public String getUserId() {

              return userId;

       }



       public void setUserId(String userId) {

              this.userId = userId;

       }



       public String getPassword() {

              return password;

       }



       public void setPassword(String password) {

              this.password = password;

       }

}

---

[DBConnectionManger.java]

package model.dao;

import java.sql.Connection;

import java.sql.SQLException;

public class DBConnectionManger {

       private static Connection conn;



       /**

        * Method to return database connection based on the underlying database.

        * @return database connection

        */

       public static Connection getConnection() {

              //TODO: implement

              return conn;

       }



       /**

        * Method to close the DB connection

        */

       public static void closeConnection() {

                     try {

                            if (conn != null) {

                                   conn.close();

                            }

                     } catch (SQLException e) {

                            e.printStackTrace();

                     }

       }

}

---

[LoginDAO.java]

package model.dao;

import java.sql.Connection;

import model.Login;

public class LoginDAO {



       private static Connection conn;



       public LoginDAO(Connection connection) {

              conn = connection;

       }



       /**

        * Method to create login

        */

       public void create() {



       }



       /**

        * Check login details from the data source

        * @param login parameter with login details

        * @return true if authenticate else false

        */

       public boolean doCheck(Login login) {

              boolean result = false;



//TODO: implement

              if (

                     login.getUserId().equalsIgnoreCase("Tokyo") &&

                     login.getPassword().equals("Osaka")

                     ) {

                     result = true;

              }

              return result;

       }

public Login doUpdate(Login existingLogin) {

              //TODO: implement

              return null;

       }

 }

---

[LoginManagerTest.java]

package controller;

import controller.LoginManager;

import junit.framework.TestCase;

import model.Login;

public class LoginManagerTest extends TestCase{



       public void testDoAuthentication() {



              LoginManager loginManager = new LoginManager();



              Login login = new Login();

              login.setUserId("tokyo");

              login.setPassword("Osaka");



              boolean result = loginManager.doAuthentication(login);

              assertEquals(true, result);

       }

}

---

[LoginDAOTest.java]

package model.dao;

import java.sql.Connection;

import junit.framework.TestCase;

import model.Login;

import model.dao.DBConnectionManger;

import model.dao.LoginDAO;

public class LoginDAOTest extends TestCase {

       Connection connection;



       @Override

       protected void setUp() throws Exception {

              connection = DBConnectionManger.getConnection();

              super.setUp();

       }



       public void testDoCheck() {

              LoginDAO loginDAO = new LoginDAO(connection);



              Login login = new Login();

              login.setUserId("tokyo");

              login.setPassword("Osaka");



              boolean result = loginDAO.doCheck(login);



              assertEquals(true, result);

       }



       public void testDoCheckFail() {

              LoginDAO loginDAO = new LoginDAO(connection);



              Login login = new Login();

              login.setUserId("tokyo");

              login.setPassword("osaka");



              boolean result = loginDAO.doCheck(login);



              assertEquals(false, result);

       }

       public void testCreate() {

              //TODO: implement

       }



       public void testUpdate() {

              //TODO: implement

       }



       @Override

       protected void tearDown() throws Exception {

              super.tearDown();

              connection.close();

       }

---
